# JSRPC

安装 websocket 服务

npm install nodejs-websocket
const ws = require("nodejs-websocket");
var _server = ws.createServer(conn => {
	// 接收客户端返回的数据
	conn.on("text", function(str) {
		console.log(str, "接收客户端传过来的值");
	});
    // 客户端关闭连接
	conn.on("close", function() {
	});
	conn.on("error", function(err) {
		//error
		console.log(err, "连接报错");
	});
});
const port = 8015;
_server.listen(port, function() {
	console.log("连接成功")
	console.log('listening on websocketServer');
})

建立连接后,就可以用 python 和浏览器来回传递信息

import websocket
ws = websocket.WebSocketApp('ws://127.0.0.1:8015')
def on_message(ws, message):
    if message.split('_')[0] != 'js':
        print(message)
ws.on_message = on_message
ws.run_forever()

浏览器注入,建立通信

(function(){
	if(window.WebSocket){
		ws = new WebSocket('ws://127.0.0.1:8015/');
		ws.onopen = function(e){
	}
	ws.onclose = function(e){
	console.log('服务器关闭');
	}
	ws.onerror = function(){
	console.log('连接出错');
	}
	ws.onmessage = function(e){
	console.log(e)
	}
	}
})()

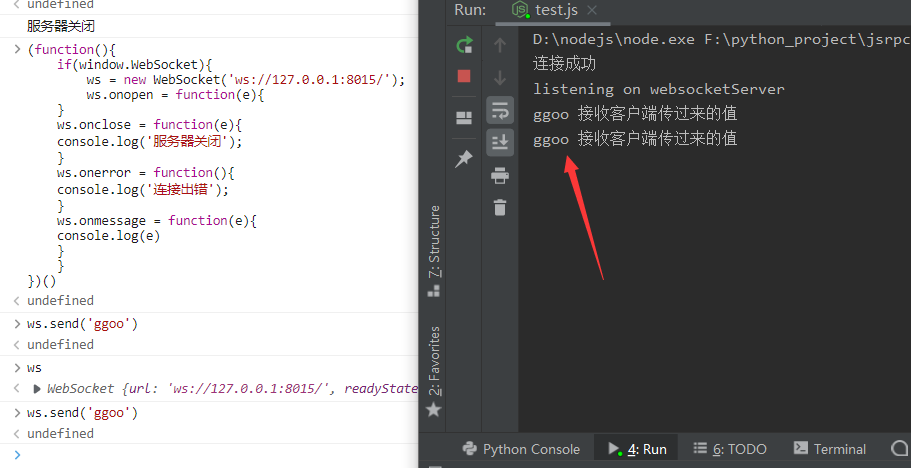

注入后和 js 的 websocketServer 建立了双向连接,然后就形成了通信。

image-20220320171420496

这样,就可以在浏览器中通过 send,进行调用。

function SekiroClient(wsURL) {
    this.wsURL = wsURL;
    this.handlers = {};
    this.socket = {};
    // check
    if (!wsURL) {
        throw new Error('wsURL can not be empty!!')
    }
    this.webSocketFactory = this.resolveWebSocketFactory();
    this.connect()
}
SekiroClient.prototype.resolveWebSocketFactory = function () {
    if (typeof window === 'object') {
        var theWebSocket = window.WebSocket ? window.WebSocket : window.MozWebSocket;
        return function (wsURL) {
            function WindowWebSocketWrapper(wsURL) {
                this.mSocket = new theWebSocket(wsURL);
            }
            WindowWebSocketWrapper.prototype.close = function () {
                this.mSocket.close();
            };
            WindowWebSocketWrapper.prototype.onmessage = function (onMessageFunction) {
                this.mSocket.onmessage = onMessageFunction;
            };
            WindowWebSocketWrapper.prototype.onopen = function (onOpenFunction) {
                this.mSocket.onopen = onOpenFunction;
            };
            WindowWebSocketWrapper.prototype.onclose = function (onCloseFunction) {
                this.mSocket.onclose = onCloseFunction;
            };
            WindowWebSocketWrapper.prototype.send = function (message) {
                this.mSocket.send(message);
            };
            return new WindowWebSocketWrapper(wsURL);
        }
    }
    if (typeof weex === 'object') {
        // this is weex env : https://weex.apache.org/zh/docs/modules/websockets.html
        try {
            console.log("test webSocket for weex");
            var ws = weex.requireModule('webSocket');
            console.log("find webSocket for weex:" + ws);
            return function (wsURL) {
                try {
                    ws.close();
                } catch (e) {
                }
                ws.WebSocket(wsURL, '');
                return ws;
            }
        } catch (e) {
            console.log(e);
            //ignore
        }
    }
    //TODO support ReactNative
    if (typeof WebSocket === 'object') {
        return function (wsURL) {
            return new theWebSocket(wsURL);
        }
    }
    // weex 和 PC环境的websocket API不完全一致,所以做了抽象兼容
    throw new Error("the js environment do not support websocket");
};
SekiroClient.prototype.connect = function () {
    console.log('sekiro: begin of connect to wsURL: ' + this.wsURL);
    var _this = this;
    // 不check close,让
    // if (this.socket && this.socket.readyState === 1) {
    //     this.socket.close();
    // }
    try {
        this.socket = this.webSocketFactory(this.wsURL);
    } catch (e) {
        console.log("sekiro: create connection failed,reconnect after 2s");
        setTimeout(function () {
            _this.connect()
        }, 2000)
    }
    this.socket.onmessage(function (event) {
        _this.handleSekiroRequest(event.data)
    });
    this.socket.onopen(function (event) {
        console.log('sekiro: open a sekiro client connection')
    });
    this.socket.onclose(function (event) {
        console.log('sekiro: disconnected ,reconnection after 2s');
        setTimeout(function () {
            _this.connect()
        }, 2000)
    });
};
SekiroClient.prototype.handleSekiroRequest = function (requestJson) {
    console.log("receive sekiro request: " + requestJson);
    var request = JSON.parse(requestJson);
    var seq = request['__sekiro_seq__'];
    if (!request['action']) {
        this.sendFailed(seq, 'need request param {action}');
        return
    }
    var action = request['action'];
    if (!this.handlers[action]) {
        this.sendFailed(seq, 'no action handler: ' + action + ' defined');
        return
    }
    var theHandler = this.handlers[action];
    var _this = this;
    try {
        theHandler(request, function (response) {
            try {
                _this.sendSuccess(seq, response)
            } catch (e) {
                _this.sendFailed(seq, "e:" + e);
            }
        }, function (errorMessage) {
            _this.sendFailed(seq, errorMessage)
        })
    } catch (e) {
        console.log("error: " + e);
        _this.sendFailed(seq, ":" + e);
    }
};
SekiroClient.prototype.sendSuccess = function (seq, response) {
    var responseJson;
    if (typeof response == 'string') {
        try {
            responseJson = JSON.parse(response);
        } catch (e) {
            responseJson = {};
            responseJson['data'] = response;
        }
    } else if (typeof response == 'object') {
        responseJson = response;
    } else {
        responseJson = {};
        responseJson['data'] = response;
    }
    if (Array.isArray(responseJson)) {
        responseJson = {
            data: responseJson,
            code: 0
        }
    }
    if (responseJson['code']) {
        responseJson['code'] = 0;
    } else if (responseJson['status']) {
        responseJson['status'] = 0;
    } else {
        responseJson['status'] = 0;
    }
    responseJson['__sekiro_seq__'] = seq;
    var responseText = JSON.stringify(responseJson);
    console.log("response :" + responseText);
    this.socket.send(responseText);
};
SekiroClient.prototype.sendFailed = function (seq, errorMessage) {
    if (typeof errorMessage != 'string') {
        errorMessage = JSON.stringify(errorMessage);
    }
    var responseJson = {};
    responseJson['message'] = errorMessage;
    responseJson['status'] = -1;
    responseJson['__sekiro_seq__'] = seq;
    var responseText = JSON.stringify(responseJson);
    console.log("sekiro: response :" + responseText);
    this.socket.send(responseText)
};
SekiroClient.prototype.registerAction = function (action, handler) {
    if (typeof action !== 'string') {
        throw new Error("an action must be string");
    }
    if (typeof handler !== 'function') {
        throw new Error("a handler must be function");
    }
    console.log("sekiro: register action: " + action);
    this.handlers[action] = handler;
    return this;
};
function guid() {
            function S4() {
                  return (((1+Math.random())*0x10000)|0).toString(16).substring(1);
            }
            return (S4()+S4()+"-"+S4()+"-"+S4()+"-"+S4()+"-"+S4()+S4()+S4());
        }
var client = new SekiroClient("ws://127.0.0.1:5620/business-demo/register?group=ws-group&clientId="+guid());
client.registerAction("clientTime",function(request, resolve,reject ){
            // 在这里 div
            resolve(""+new Date());
});

sekiro 框架注入 Js

http://127.0.0.1:5620/business-demo/invoke?group=****&action=****&page=(这里选用要传的值)

这里的 group 对应上面的组,action 对应其调用的方法,这里是 clientTime;

若要传值,可以采用类似 python
